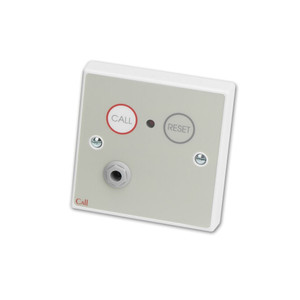

NC809DB Button Reset Point

NC809DB Button Reset Point

SKU:
NC809DB
£13.08
Width:
8.70 (cm)
Height:
8.70 (cm)
Depth:
2.40 (cm)
Description

Button Reset Point

 NC809DB

  • A button-operated reset point for use with C-TEC's 800 Series Call System.
  • Can be used to remotely cancel standard calls generated from ceiling pulls and/or wall call points that are wired on the same zone.
  • Mounts on a standard UK 25mm single gang flush or surface back box.

Quiescent current 0mA (none).
Alarm current Determined by the type of control equipment and number / type of field devices connected to the system.
Controls Reset button (cancels Standard calls from any device wired on the same Zone).
Connections SIG (Signal); -Ve (Negative); RC (connected to Signal)
Product dimensions (mm) 87 W x 87 H x 24 D mm. Mounts on a UK 25mm single gang back box.
Construction & finish Plastic.
IP Rating IP41.
Weight 58g
Operating conditions/temperature -5ºC to +40ºC. Max. relative humidity 95% non-condensing.
